How to sum and count cells by color in Excel

by | updated on

In this article, you will learn new effective approaches to summing and counting cells in Excel by color. These solutions work for cells colored manually and with conditional formatting in all versions of Excel 2010 through Excel 365.

Even though Microsoft Excel has a variety of functions for different purposes, none can calculate cells based on their color. Aside from third-party tools, there is only one efficient solution - create your own functions. If you know very little about user-defined functions or have never heard of this term before, don't panic. The functions are already written and tested by us. All you need to do is to insert them in your workbook :)

How to count cells by color in Excel

Below, you can see the codes of two custom functions (technically, these are called user-defined functions or UDF). The first one is purposed for counting cells with a specific fill color and the other - font color. Both are written by Alex, one of our best Excel gurus.

Custom functions to count by color in Excel
Function CountCellsByColor(data_range As Range, cell_color As Range) As Long Dim indRefColor As Long Dim cellCurrent As Range Dim cntRes As Long Application.Volatile cntRes = 0 indRefColor = cell_color.Cells(1, 1).Interior.Color For Each cellCurrent In data_range If indRefColor = cellCurrent.Interior.Color Then cntRes = cntRes + 1 End If Next cellCurrent CountCellsByColor = cntRes End Function Function CountCellsByFontColor(data_range As Range, font_color As Range) As Long Dim indRefColor As Long Dim cellCurrent As Range Dim cntRes As Long Application.Volatile cntRes = 0 indRefColor = font_color.Cells(1, 1).Font.Color For Each cellCurrent In data_range If indRefColor = cellCurrent.Font.Color Then cntRes = cntRes + 1 End If Next cellCurrent CountCellsByFontColor = cntRes End Function

Once the functions are added to your workbook, they will do all work behind the scenes, and you can use them in the usual way, just like any other native Excel function. From the end-user perspective, the functions have the following look:

Count cells by fill color

To count cells with a particular background color, this is the function to use:

CountCellsByColor(data_range, cell_color)

Where:

  • Data_range is a range in which to count cells.
  • Cell_color is a reference to the cell with the target fill color.

To count cells of a specific color in a given range, carry out these steps:

  1. Insert the code of the CountCellsByColor function in your workbook.
  2. In a cell where you want the result to appear, start typing the formula: =CountCellsByColor(
  3. For the first argument, enter the range in which you want to count colored cells.
  4. For the second argument, supply the cell with the target color.
  5. Press the Enterkey. Done!

For example, to find out how many cells in range B3:F24 have the same color as H3, the formula is:

=CountCellsByColor(B3:F24, H3)

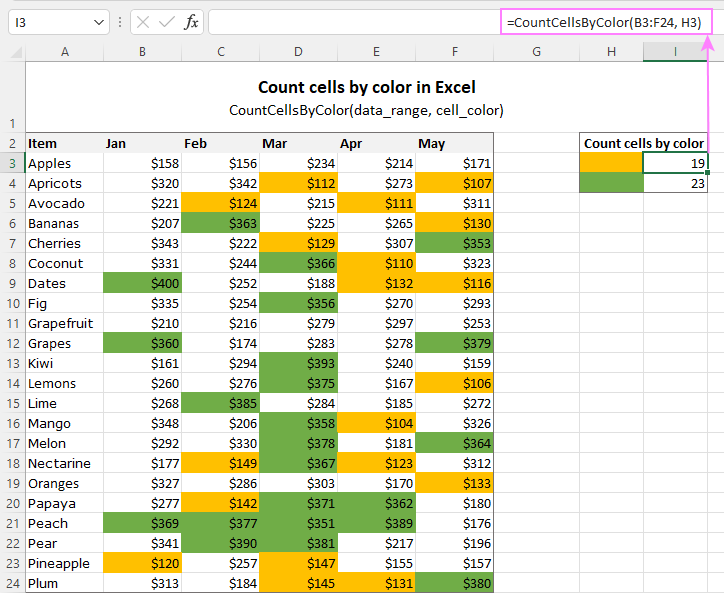

In our sample dataset, the cells with values less than 150 are colored in yellow, and the cells with values higher than 350 in green. The function gets both counts with ease:
Counting cells by color in Excel

Count cells by font color

In case your cell values have different font colors, you can count them using this function:

CountCellsByFontColor(data_range, font_color)

Where:

  • Data_range is a range in which to count cells.
  • Font_color is a reference to the cell with the sample font color.

For example, to get the number of cells in B3:F24 whose values have the same font color as H3, the formula is:

=CountCellsByFontColor(B3:F24, H3)
Custom function to count cells by font color in Excel

Tip. If you'd like to name the functions differently, feel free to change the names directly in the code.

How to sum by color in Excel

To sum colored values, add the following two functions to your workbook. As with the previous example, the first one handles fill color and the other - font color.

Custom functions to sum by color in Excel
Function SumCellsByColor(data_range As Range, cell_color As Range) Dim indRefColor As Long Dim cellCurrent As Range Dim sumRes Application.Volatile sumRes = 0 indRefColor = cell_color.Cells(1, 1).Interior.Color For Each cellCurrent In data_range If indRefColor = cellCurrent.Interior.Color Then sumRes = WorksheetFunction.Sum(cellCurrent, sumRes) End If Next cellCurrent SumCellsByColor = sumRes End Function Function SumCellsByFontColor(data_range As Range, font_color As Range) Dim indRefColor As Long Dim cellCurrent As Range Dim sumRes Application.Volatile sumRes = 0 indRefColor = font_color.Cells(1, 1).Font.Color For Each cellCurrent In data_range If indRefColor = cellCurrent.Font.Color Then sumRes = WorksheetFunction.Sum(cellCurrent, sumRes) End If Next cellCurrent SumCellsByFontColor = sumRes End Function

Sum values by fill color

To sum by fill color in Excel, this is function to use:

SumCellsByColor(data_range, cell_color)

Where:

  • Data_range is a range in which to sum values.
  • Cell_color is a reference to the cell with the fill color of interest.

For example, to add up the values of all cells in B3:F24 that are shaded with the same color as H3, the formula is:

=SumCellsByColor(B3:F24, H3)
Sum values by fill color in Excel.

Sum values by font color

To sum numeric values with a specific font color, use this function:

SumCellsByFontColor(data_range, font_color)

Where:

  • Data_range is a range in which to sum cells.
  • Font_color is a reference to the cell with the target font color.

For instance, to add up all the values in cells B3:F24 with the same font color as the value in H3, the formula is:

=SumCellsByFontColor(B3:F24, H3)
Sum values by font color in Excel.

Count and sum by color across entire workbook

To count and sum cells of a certain color in all sheets of a given workbook, we created two separate functions, which are named WbkCountByColor and WbkSumByColor, respectively. Here comes the code:

Custom functions to count and sum by color across workbook
Function WbkCountByColor(cell_color As Range) Dim vWbkRes Dim wshCurrent As Worksheet Application.ScreenUpdating = False Application.Calculation = xlCalculationManual vWbkRes = 0 For Each wshCurrent In Worksheets wshCurrent.Activate vWbkRes = vWbkRes + CountCellsByColor(wshCurrent.UsedRange, cell_color) Next Application.ScreenUpdating = True Application.Calculation = xlCalculationAutomatic WbkCountByColor = vWbkRes End Function Function WbkSumByColor(cell_color As Range) Dim vWbkRes Dim wshCurrent As Worksheet Application.ScreenUpdating = False Application.Calculation = xlCalculationManual vWbkRes = 0 For Each wshCurrent In Worksheets wshCurrent.Activate vWbkRes = vWbkRes + SumCellsByColor(wshCurrent.UsedRange, cell_color) Next Application.ScreenUpdating = True Application.Calculation = xlCalculationAutomatic WbkSumByColor = vWbkRes End Function

Note. To make the functions' code more compact, we refer to the other two functions that count and sum within a specified range, CountCellsByColor and SumCellsByColor. So, for the "workbook functions" to work, be sure to add this code to your Excel too.

Count colored cells in entire workbook

To find out how many cells of a particular color there are in all sheets of a given workbook, use this function:

WbkCountByColor(cell_color)

The function takes just one argument - a reference to any cell filled with the color of interest. So, a real-life formula may look something like this:

=WbkCountByColor(A1)

Where A1 is the cell with the sample fill color.

Sum colored cells in whole workbook

To get a total of values in all cells of the current workbook highlighted with a particular color, use this function:

WbkSumByColor(cell_color)

Assuming the target color is in cell B1, the formula takes this form:

=WbkSumByColor(B1)

Count and sum conditionally formatted cells

The custom functions for adding up and counting color-coded cells are really nice, aren't they? The problem is that they do not work for cells colored with conditional formatting, alas :(

To handle conditional formatting, we have written a different code (kudos to Alex again!). It works well with both preset formats and custom formula-based rules. Contrasting with the previous examples, this code is a macro, not a function. The macro counts and sums conditionally formatted cells by fill color. Please insert it in your VBA Editor, and then follow the below instructions.

VBA macro to count and some conditionally formatted cells.
Sub SumCountByConditionalFormat() Dim indRefColor As Long Dim cellsColorSample As Range Dim cntRes As Long Dim sumRes Dim cntCells As Long Dim indCurCell As Long On Error Resume Next cntRes = 0 sumRes = 0 cntCells = Selection.CountLarge Set cellsColorSample = Application.InputBox( _ "Select sample color:", "Select a cell with sample color", _ Application.Selection.Address, Type:=8) If Not (cellsColorSample Is Nothing) Then indRefColor = cellsColorSample.Cells(1, 1).DisplayFormat.Interior.Color For indCurCell = 1 To (cntCells) If indRefColor = Selection(indCurCell).DisplayFormat.Interior.Color Then cntRes = cntRes + 1 sumRes = WorksheetFunction.Sum(Selection(indCurCell), sumRes) End If Next MsgBox "Count=" & cntRes & vbCrLf & "Sum= " & sumRes & vbCrLf & vbCrLf & _ "Color=" & Left("000000", 6 - Len(Hex(indRefColor))) & _ Hex(indRefColor) & vbCrLf, , "Count & Sum by Conditional Format color" End If End Sub

How to count and sum conditionally formatted cells using VBA macro

With the macro's code inserted in your Excel, this is what you need to do:

  1. Select one or more ranges where you want to count and sum colored cells. Make sure the selected range(s) contains numerical data.
  2. Press Alt + F8, select the SumCountByConditionalFormat macro in the list, and click Run.
  3. A small dialog box will pop asking you to select a cell with the sample color. Do this and click OK.

VBA macro to count and sum conditionally formatted cells

For this example, we used the inbuilt Highlight Cell Rules and got the following results:

  • Count (12) the number of cells in range B2:E22 with the same color as G3.
  • Sum (1512) is the sum of values in cells formatted with Light Red Fill.
  • Color is a hexadecimal color code of the sample cell.

A count and sum of conditional formats

Tip. The sample workbook with the SumCountByConditionalFormat macro is available for download at the end of this post.

How to get cell color in Excel

If you need (or are curious) to know the color of a specific cell (fill or font color), add the following user-defined functions to your Excel. It returns ColorIndex as a decimal number.

Custom functions to get the cell color
Function GetCellColor(cell_ref As Range) Dim indRow, indColumn As Long Dim arResults() Application.Volatile If cell_ref Is Nothing Then Set cell_ref = Application.ThisCell End If If cell_ref.Count > 1 Then ReDim arResults(1 To cell_ref.Rows.Count, 1 To cell_ref.Columns.Count) For indRow = 1 To cell_ref.Rows.Count For indColumn = 1 To cell_ref.Columns.Count arResults(indRow, indColumn) = cell_ref(indRow, indColumn).Interior.Color Next Next GetCellColor = arResults Else GetCellColor = cell_ref.Interior.Color End If End Function Function GetFontColor(cell_ref As Range) Dim indRow, indColumn As Long Dim arResults() Application.Volatile If cell_ref Is Nothing Then Set cell_ref = Application.ThisCell End If If cell_ref.Count > 1 Then ReDim arResults(1 To cell_ref.Rows.Count, 1 To cell_ref.Columns.Count) For indRow = 1 To cell_ref.Rows.Count For indColumn = 1 To cell_ref.Columns.Count arResults(indRow, indColumn) = cell_ref(indRow, indColumn).Font.Color Next Next GetFontColor = arResults Else GetFontColor = cell_ref.Font.Color End If End Function

Note. The functions only work for colors applied manually, and not with conditional formatting.

Get fill color of a cell

To return a decimal code of the color a given cell is highlighted with, make use of this function:

GetCellColor(cell_ref)

For example, to get the color of cell A2, the formula is:

=GetCellColor(A2)

Get font color of a cell

To get a font color of a cell, use an analogous function:

GetFontColor(cell_ref)

For instance, to find the font color of cell E2, the formula is:

=GetFontColor(E2)

Get hexadecimal color code of a cell

To convert a decimal color index returned by our custom functions into a hexadecimal color code, make use of Excel's native DEC2HEX function.

For example:

="#"&DEC2HEX(GetCellColor(A2))

="#"&DEC2HEX(GetFontColor(E2))
Custom functions to get a cell's color in Excel

How to insert VBA code in your workbook

To add the function's or macro's code to your Excel, move on with these 4 steps:

  1. In your workbook, press Alt + F11 to open Visual Basic Editor.
  2. In the left pane, right-click on the workbook name, and then choose Insert > Module from the context menu.
  3. In the Code window, insert the code of the desired function(s):
  4. Save your file as Macro-Enabled Workbook (.xlsm).

If you are not very comfortable with VBA, you can find the detailed step-by-step instructions and a handful of useful tips in this tutorial: How to insert and run VBA code in Excel.

How to get custom functions to update

When summing and counting color-coded cells in Excel, please keep in mind that your formulas won't recalculate automatically after coloring a few more cells or changing existing colors. Please don't be angry with us, this is not a bug in our code :)

The point is that changing cell color in Excel does not trigger worksheet recalculation. To get the formulas to update, press either F9 to recalculate all open workbooks or Shift + F9 to recalculate only the active sheet. Or just place the cursor into any cell and press F2, and then hit Enter. For more information, please see How to force recalculation in Excel.

Fastest way to calculate colored cells in Excel

If you do not want to waste time tinkering with VBA codes, I'm happy to introduce you to our very simple but powerful Count & Sum by Color tool. Together with 70+ other time-saving add-ins, it is included with Ultimate Suite for Excel.

Once installed, you will find it on the Ablebits Tools tab of your Excel ribbon:
Ablebits Count & Sum by Color tool for Excel

And here is a short summary of what the Count & Sum by Color add-in can do:

  • Count and sum cells by color in all versions of Excel 2016 - Excel 365.
  • Find average, maximum and minimum values in the colored cells.
  • Handle cells colored manually and with conditional formatting.
  • Paste the results anywhere in a worksheet as values or formulas.

Sum and count cells by one color

Selecting the Sum & Count by One Color option will open the following pane in the left part of your worksheet. You specify the source range and sample cell, then then click Calculate.

The result will appear on the pane straight away! No macros, no formulas, no pain :)

Apart from count and sum, the add-in also shows Average, Max and Min for colored numbers. To insert a particular value in the sheet, click the Paste button next to it. Or click Paste All to have all the results inserted at once:
Calculate cells in Excel by selected color.

Count and sum all colored cells at once

To handle all colored cells at a time, choose the Sum & Count by All Color option. Basically, it works in the same way, except that instead of color, you choose the function to calculate.
Calculate all colored cells at once.

Tip. To have the results inserted in the worksheet as formulas (custom functions), check the corresponding box at the bottom of the pane.

Well, calculating colored cells in Excel is pretty easy, isn't it? Of course, if you have that little gem that makes the magic happen :) Curious to see how our add-in will cope with your colored cells? The download link is right below.

Available downloads

Sum and count by color in Excel - examples (.xlsm file)
Ultimate Suite 14-day fully-functional version (.zip file)
